Autopilot

A composition for the "Dare to Fail" project

Tim Thompson - April, 1997

Autopilot, MIDI File (48K)


Autopilot is a composition I did for the second round of the "Dare to Fail" project.   It's fascinating to hear the incredible variety of compositions that people can come up with, all starting from a common point. Below is a detailed description of the process I followed when composing Autopilot.  To display full-resolution versions of the screen dumps shown below, just click on each image.

  etting started...

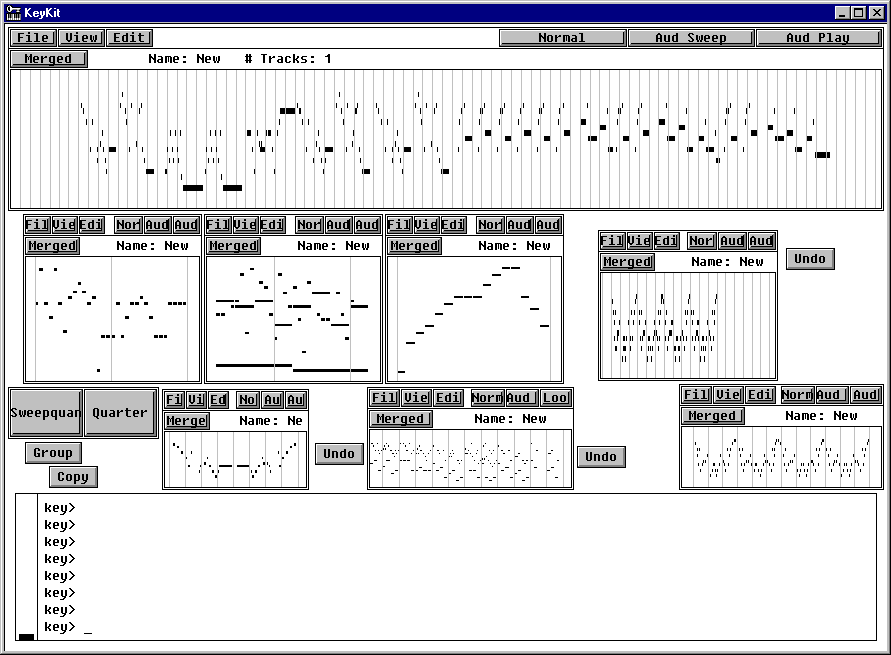

I first read in the basic track that was the starting point of the project.  In the first screen dump below, the basic track is shown in the large horizontal window at the top of the screen.  I then started auditioning it, and copying little pieces of it into separate windows (known as tools).  I usually use the group tool - a multi-track editor with dozens of algorithmic editing operations.  The music is represented in piano-roll style, and can contain any number of tracks (though not all of the tracks need be visible).  In the screen dump below, there are 8 such tools on the screen.KeyKit screen dump  At the bottom of the screen is a command prompt, which I rarely use - most operations are performed with the mouse.  Pull-off menus and pull-off buttons make repetitive operations convenient.  For example, in the screen dump you can see a number of buttons (small grey rectangles) that have been pulled off and placed in convenient locations.My goal in the first phase of the composition was to build up a large collection of interesting phrases, using the basic track as the starting point.  I would grab a small section of the basic track, and (in a separate group tool) start manipulating it - flipping it, reversing it, stepping it (making all notes the same duration), shuffling it (like a deck of cards, horizontally), etc.  If I found a phrase that sounded interesting, I would move that tool's window to the side and start working on a new on.  Sometimes I would work on manipulating a small phrase, and sometimes on a large one.  When working on a large phrase, I would often find a interesting measure within it, and copy it out into a separate tool.  I have certain manipulation techniques that I use a lot, but the pallette of algorithmic editing operations is large enough so that I can always find something new to try.

M  idway through...

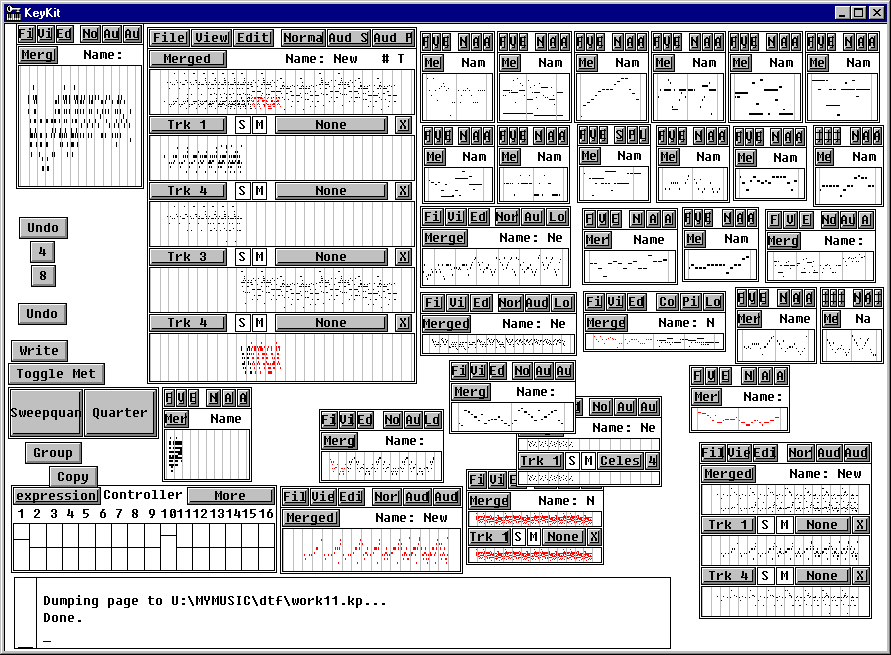

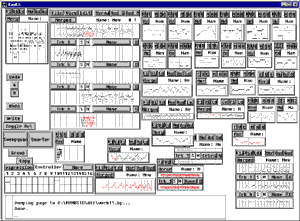

In this next screen dump, you can see that I ended up with about two dozen "interesting" phrases that I produced by manipulating the basic track.  At no point in the process (up to this point) did I touch a musical keyboard - everything was done with the mouse.KeyKit screen dump  Some of the phrases became drum tracks, by changing the MIDI channel to 10 (the General MIDI drum track).  Once converted to channel 10, I would then transpose the entire phrase up and down until I got a drum pattern that I liked.  It was at this point that I started piecing some of the smaller phrases into larger phrases - you can see in the screen dump that some of the tools contain larger pieces of music.  Since many of the manipulations were in the same key (because some manipulations involve forcing notes to a particular scale), they often sounded good when played together.  At some point I decided I had a big enough phrase to start building a composition around, and so the largest window (toward the upper left, showing 5 tracks) became the beginning of the final piece.  At no point in the process did I have any idea where I was headed - the evolution of the composition was entirely guided by whatever sounded good as I played around. When I had sections (both melodic and with drums) that sounded good, I then started repeating them.  I also started transposing the repetitions, so that it wasn't always in the same key.  I then set up a new track that had the "root" note for each measure - this root note was then used to control a special algorithm I have that produces melodic material.  This algorithm, which I call beat step, produces melodies whose key is determined by one set of notes, and whose general direction is "guided" by another set of notes. Another algorithmic manipulation I used (in two places) is a "fade in" - a phrase is repeated (say) 8 times, starting with only a few notes, and gradually including more and more notes until the complete phrase is being repeated.  This technique is used at the beginning of the piece, and again in the middle.  The notes selected for the fade in are random, however I do not blindly accept whatever is produced - if I don't like the way it sounds, I merely use "undo" and repeat the operation until I get something that sounds good.

W  rapping it up...

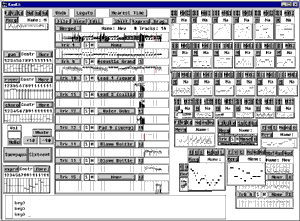

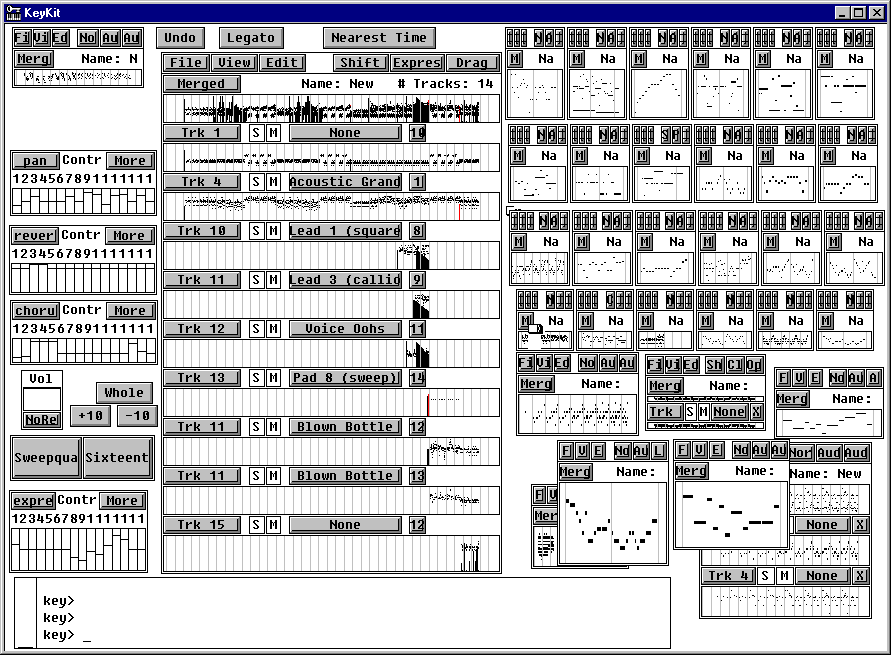

The screen dump below shows the state of my screen as the composition neared completion.  I finally resorted to using my musical keyboard and played a melody on top of one of the sections (at the beginning of the piece).KeyKit screen dump  I originally played this melody using a flute sound.  However, I found that a bass sound was a smoother way of starting the piece, and I took the same melody and repeated it later with a synth lead sound.  Other than this single melody, the entire piece was composed with the mouse and algorithmic manipulation.  The words "algorithmic composition" could be used to describe this process, however it's important to realize that, at least in my process, I throw out 95% of the algorithmic manipulations - the composition process becomes an algorithmic improvisation and filtering process, using my personal taste as the filter.  I also do more normal composition, where I compose a complete piece at the keyboard and then arrange and record it on the computer.  However, the composition process I have described here allows me to explore and produce things that I could never conceive of or execute without the help of the algorithmic manipulations enabled by a computer.  For example, the drum patterns I do manually are pathetic compared to the ones I produce algorithmically.  Melodies are often better done manually (and so I don't hesitate to add them manually, as I did in this piece), however within the algorithmically generated melodic material of Autopilot there are lots of interesting twists and turns.  And here again is the MIDI file, intended to be played on a General MIDI synthesizer.


Autopilot, MIDI File (48K)

S  oftware...

The software I use to compose with is called KeyKit - it's a multi-tasking programming language designed specifically for MIDI work, and I've used it to build an entire multi-window GUI for MIDI experimentation and composition.  You can get the source code and executables from the KeyKit download site.
